SAPHO Kft.
  • 0
  • 1

Szenzoros öblítő mecahnika piszoárhoz, 9V (6F22) (PS006)

Ajánlott fogyasztói ár ÁFÁ-val
145 000 Ft /db
Megtakarítás 0,0 %
Az Ön ára ÁFA nélkül 114 173 Ft /db
Az Ön ára ÁFA-val 145 000 Ft /db
ÁFA 27%
Cseh készleten 2 db
MárkanévSapho
Széria
Rendelési kódPS006
Garancia24 hónap
Súly1,46 kg
SzínInox
Csomag1 db
Jótállás2 év

Sensor flushing urinal

It reacts to the presence of the person in front of the urinal at a distance of max. 0.7 m from the sensor for more than 7.5 s. Flushing occurs after the person exits the sensing zone. The flushing time is adjustable from 0.5 s to 15.5 s (factory setting 3s).

The urinal infrared flushing system meets the requirements of EU standards and is intended wherever user comfort and maximum water savings are required. A remote control for setting infrared sensor parameters is not included.

Parameters:

  • water inlet: male thread G 3/4 "
  • water outlet: male thread G 3/4 "
  • Supply voltage: 6V, 4xAA battery
  • power consumption max .: 3 VA
  • sensor range: 0.6-0.75 m
  • water pressure: 0.1-0.6 MPa
  • flow: 12l / min

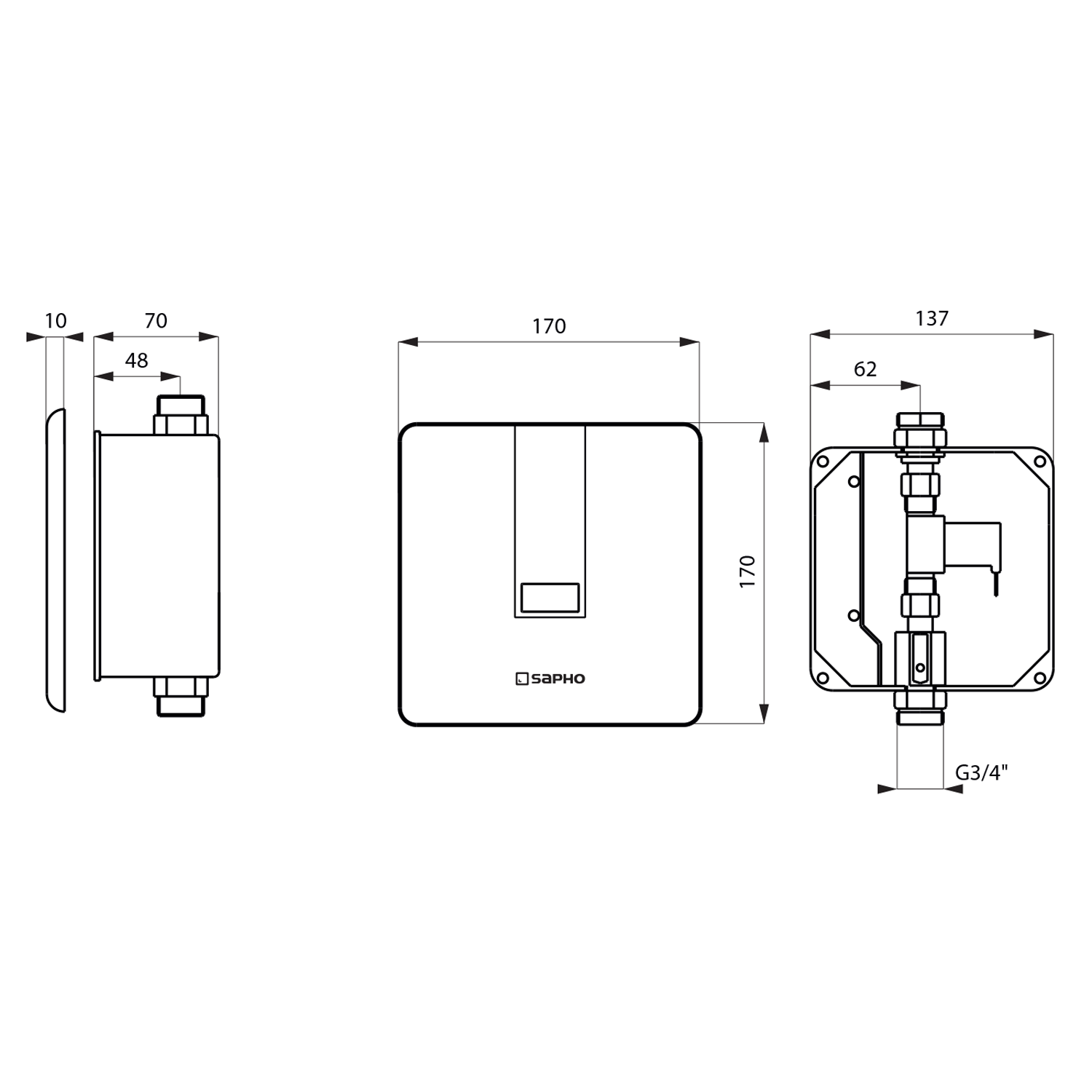

  • dimension of stainless steel cover 170 x 170 x 10 mm
  • mounting box size 140 x 140 x 75 mm
  • Ambient temperature: +5 ÷ + 40 ° C (must be protected from frost)
  • Possibility of setting by remote control (flushing length, switch-off during cleaning)
  • automatic flush 24h after the last switching
  • weight: 0,9 kg

Package contains:

  • anti-vandal stainless steel housing with electronics
  • plastic mounting box with screw connection
  • solenoid valve
  • ball valve
  • 4 pcs AA alkaline batteries 1.5 V, 2700 mAh with case

Made in Czech Republic
