CUBE csatlakozó készlet szett, sarokszeleppel, szögletes, króm (CP4010S)

Ajánlott fogyasztói ár ÁFÁ-val
88 000 Ft /db
Megtakarítás 0,0 %
Az Ön ára ÁFA nélkül 69 291 Ft /db
Az Ön ára ÁFA-val 88 000 Ft /db
ÁFA 27%
Cseh készleten > 10 db

MárkanévSapho
Széria
Rendelési kódCP4010S
Garancia24 hónap
Súly1,05 kg
SzínKróm
Csomag1 db
Fűtési lehetőségKözponti fűtés
KivitelOldalsó
Jótállás2 év

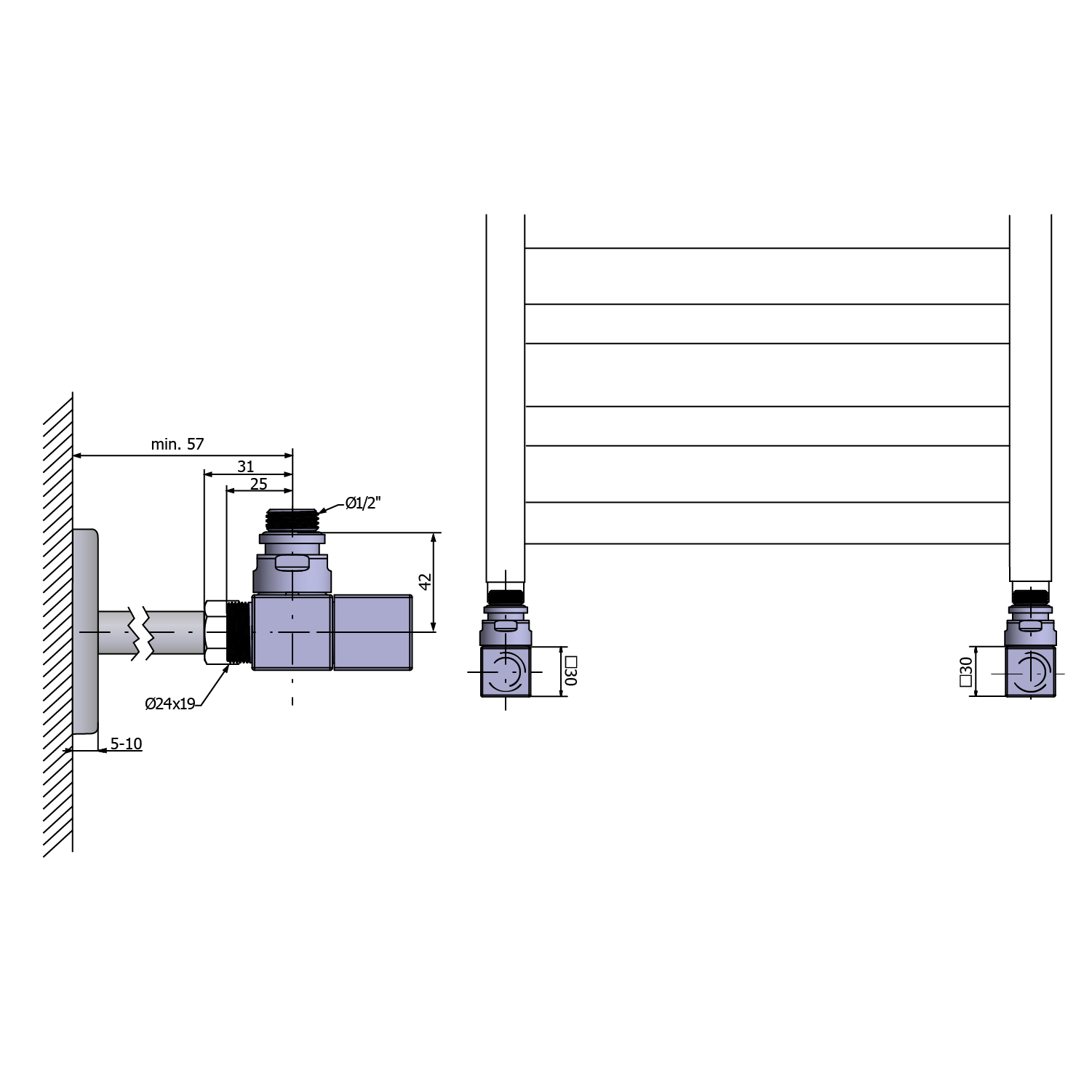

Including universal pipes adaptor for Cu (O15 mm) and Alupex (O16x2 mm). No need to order anything else to connect the heating radiator.
We recommend to buy a cover plate.

The check valve is hidden under the decorative cover. It is closed with a hexagonal key. It does not serve to regulate the temperature, only to close the piping, eg in the case of dismantling the radiator, without the need to drain the heating medium.

Central heating

In the case of central heating, the selection of the connection valves is very important. You can choose between using a manual valve or a valve with a thermostatic head.

Manual valve: Temperature control is carried out manually. The hot water supply can be connected to the left/right side of the valve without limitation.
A valve with a thermostatic head: the integrated thermostat maintains the temperature inside the towel rail. The thermostatic head must be located at the hot water inlet (except MONO ONE).

The connection valves we offer are supplied with a clamping fitting for the most common pipes (O15 mm for copper and O16 mm for Alupex), so there is no need to buy anything else for the connection. For covering the inlet pipes and holes in the wall, we recommend the addition of cover rosettes.

Towel rail with a 50 mm connection spacing
Towel rail with side connection
Towel rail with a single-point connection
