INTRAMURA - Stainless steel wall-mounted channel with grid in modern design and perfect workmanship.
An elegant shower drainage solution to keep the bathroom look compact and harmonious.
It serves to drain the floor surfaces of shower enclosures and bathrooms, where it replaces the shower tray or floor drain.

BENEFITS OF INTRAMURAL:

• Removable unit for maintenance and inspection or cleaning of downstream pipes
• A full range of accessories is available to connect the waterproofing to achieve a perfect seal throughout the bathroom

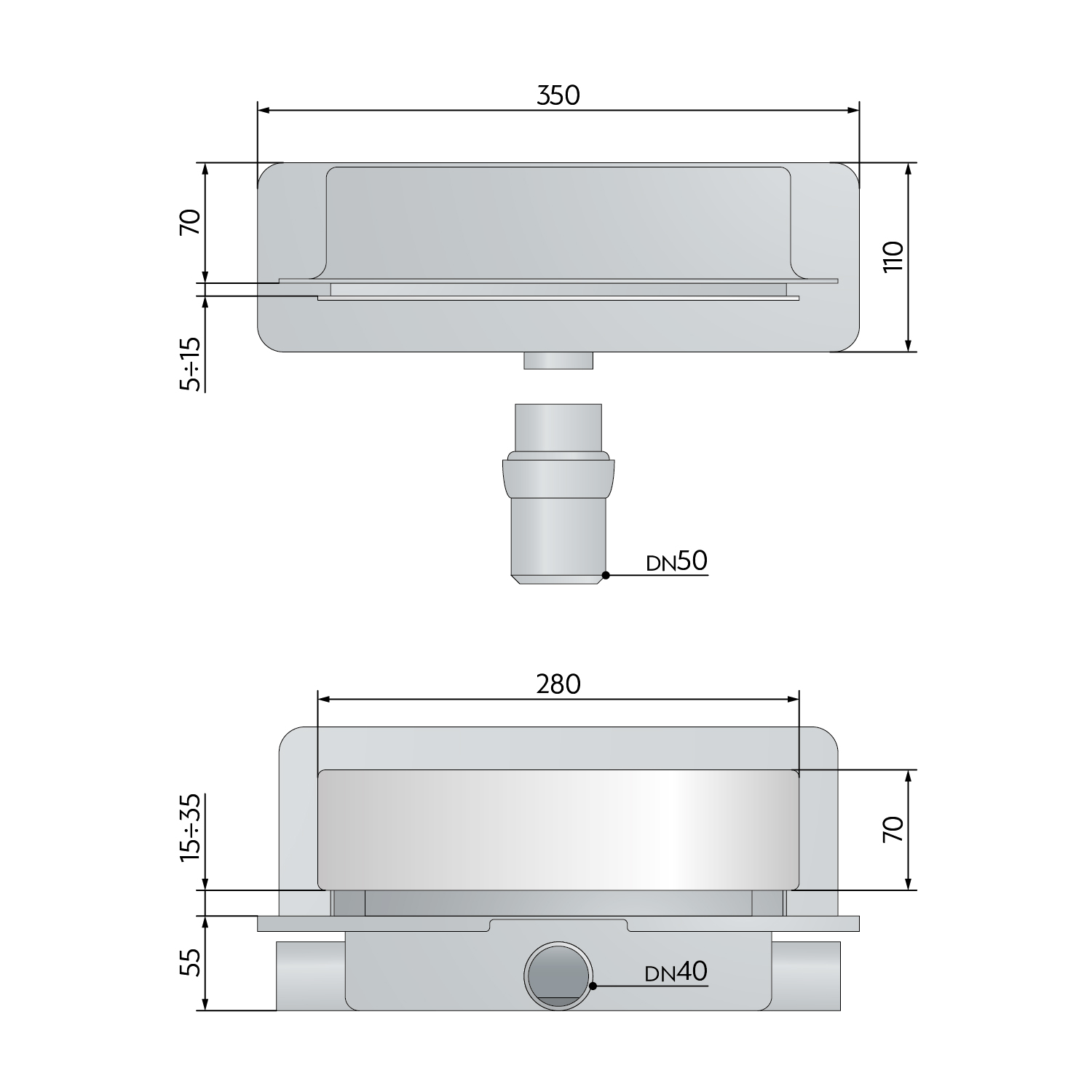

• Installation height of only 55 mm is suitable for bathroom renovations
• Grate size 280x70 mm
• Insulating fabric and waterproofing foil included
• Material - stainless steel satin AISI 316

WARNING!

• The drainage capacity of the channel is not only determined by its own drainage capacity, but also by the waste pipe to which it is connected
• The distance from the waste pipe to the vertical drain pipe must be as short as possible
• There shall be as few bends in the waste pipe as possible
• The waste pipe shall be of sufficient slope, at least 2 cm/bm
