Central heating

In the case of central heating, the selection of the connection valves is very important. You can choose between using a manual valve or a valve with a thermostatic head.

Manual valve: Temperature control is carried out manually. The hot water supply can be connected to the left/right side of the valve without limitation.
A valve with a thermostatic head: the integrated thermostat maintains the temperature inside the towel rail. The thermostatic head must be located at the hot water inlet (except MONO ONE).

The connection valves we offer are supplied with a clamping fitting for the most common pipes (O15 mm for copper and O16 mm for Alupex), so there is no need to buy anything else for the connection. For covering the inlet pipes and holes in the wall, we recommend the addition of cover rosettes.

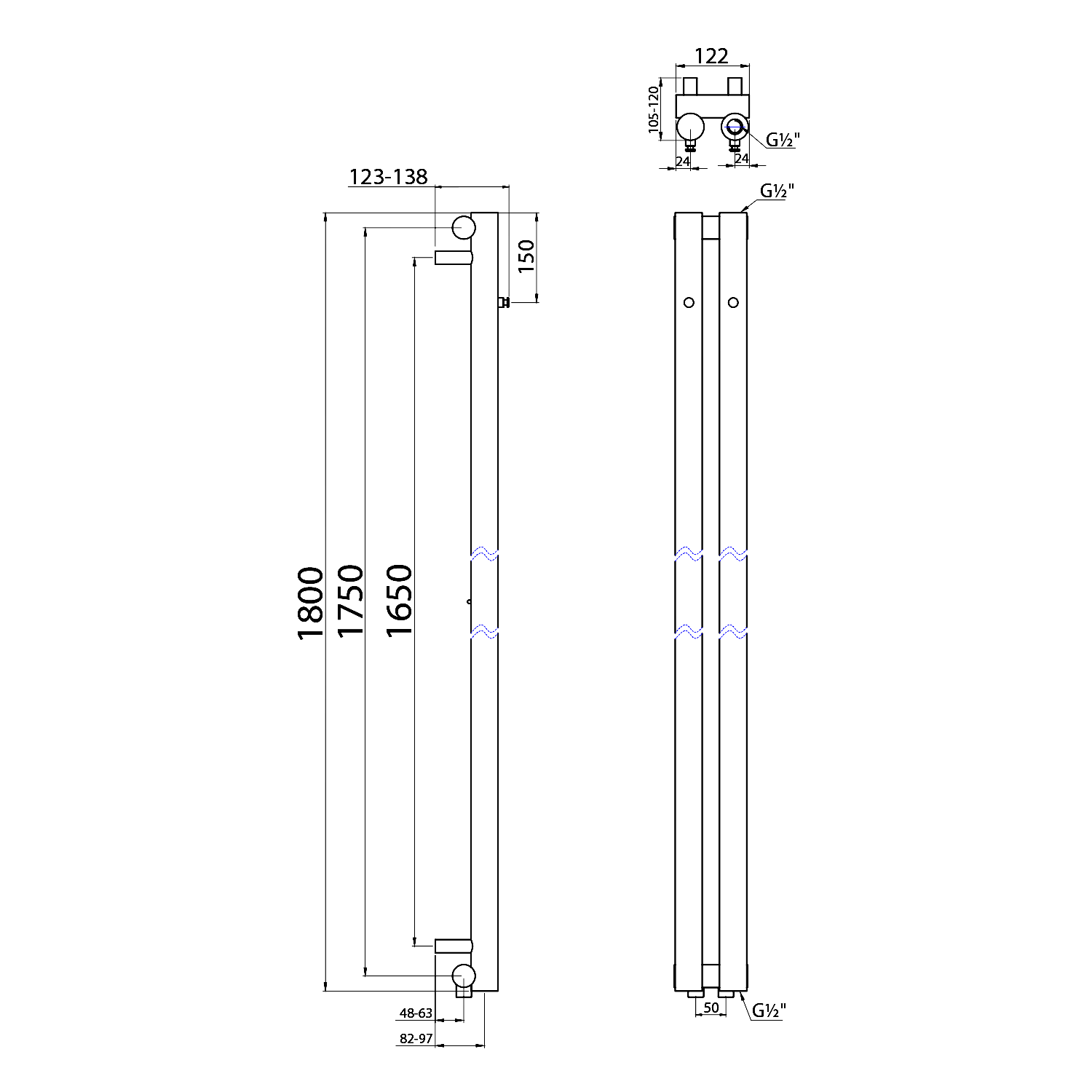

Towel rail with a 50 mm connection spacing

Towel rail with side connection

Towel rail with a single-point connection

Electric heating

If the heater is only heated electrically, i.e. only a heating rod is used, a 1/2" radiator plug must be purchased additionaly. This serves to plug the other hole in the heater which would otherwise be used for the central heating connection valve. We recommend filling the heater with distilled water. It is also recommended to pour in the LIKIDO antifreeze and anti-corrosive heat transfer fluid.
It is necessary to use a heating rod with the same or similar performance according to the specification of the radiator. For heating rods with a thermostat, the temperature of the liquid in the heater is controlled.

Towel rail with a 50 mm connection spacing

Towel rail with side connection
